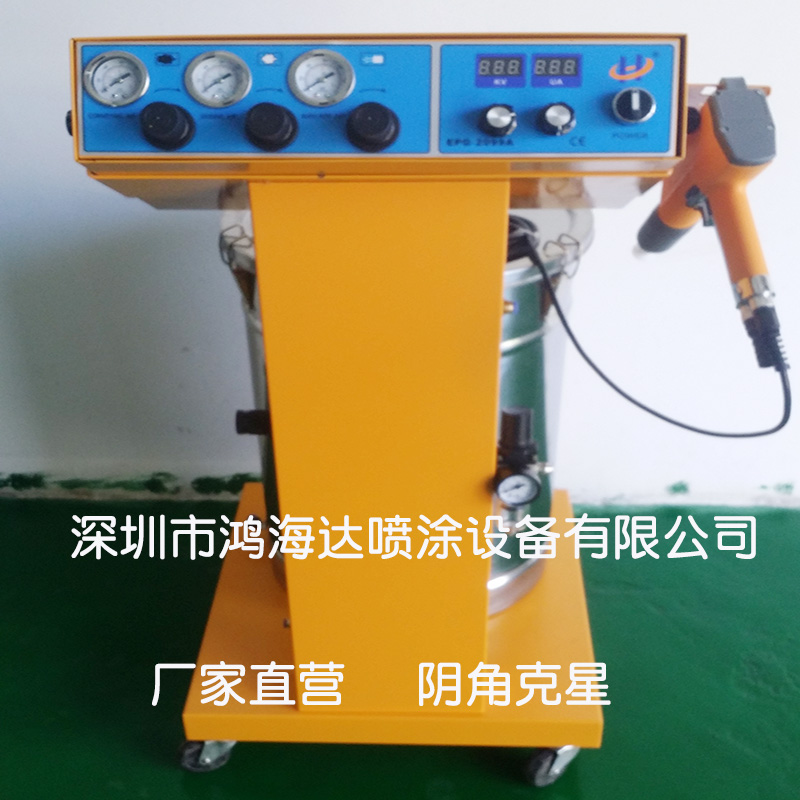

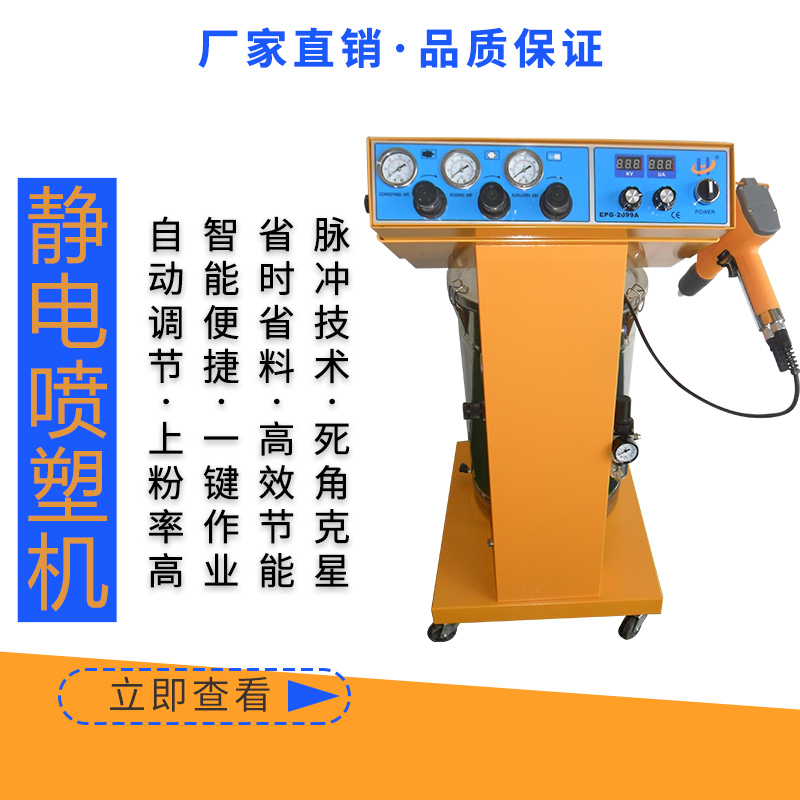

台湾杰马静电喷粉机 EPG-2099A 静电喷塑机粉末静电喷枪静电喷涂机

EPG-2099

该型设备具备了当今世界上用于喷涂设备的全部先进手段：重要极轻的喷枪（仅530克），内置可拆卸的高压模块独到的两路的中央气的设计，两路流量计显示的供粉状态，全不锈钢的供粉筒及设计紧凑的控制器将EPG-2099推至手动装备的顶级。
This type of device equipped with spraying equipment used in today's world, all of the advanced methods: Important extremely light gun (only 530 grams), built-in detachable two-way high-voltage module unique design of the central air, two-way flow meter shown for the powder state, all stainless steel barrel and design for the powder compact controller EPG-2099 to manually push the top-level equipment.

粉末手动喷枪有三种不同口径的分散粉末的导流体，3.5m长的输粉管和连接控制器电缆及中央气管。
manual powder spray gun There are three different calibers scattered powder deflector body, 3.5m long pink tubes and connecting transmission control cables and the central trachea
全不锈钢粉桶，安全盖，底层流化床。
full stainless steel powder barrel, safety cap, the bottom fluidized bed.
坚固，灵便的推车可迅速改变喷涂位置。
sturdy, handy rack can quickly change the spraying position.

技术提示：
Tech Tips：

高压模块紧邻喷嘴电压损耗低，可换式高压组件给维修带来了方便。
high-voltage module adjacent to the nozzle voltage low loss, high-pressure components can be changed to bring the convenience of maintenance.
两路中央空气设计，使电极针导流体不再积粉，加强了放电效果，提高了上粉率，旋转雾化气流则大大提高了涂层质量，两路流量计显示供粉状态直观，合理。
central air two-way design, the electrode needle deflector body is no longer the plot powder, increased discharge effect, increasing the extraction rate, rotary atomization air is greatly improved coating quality, 2 Lu meter displays the status for the powder intuitive and reasonable.
由于选用了大流量气动原件，故在较小气流压力下，仍能达到高出粉量。
The device is equipped with high-quality pneumatic components, and therefore less air pressure, could meet the large amount of powder effect.
全不锈钢供粉筒，不用工具即可方便拆卸全部零件，清洗便利快捷。
stainless steel barrels, without tools can facilitate the demolition of all the parts, cleaning convenient and speedy.

技术参数：

电子控制器Electronic Controller		气动控制Pneumatic Controllers		粉末喷枪Electrostatic powder spray gun
输入气压 Input pressure	单相：00-240V Single-phase：200-240V	电磁阀气动控制电压Solenoid valve control voltage	24DC	输入电压 Input	0~25VPP
输入功率 Input power	50VA	输入气压 Input pressure	10KGF/OM2	电源频率Voltage Frequency	约25KHZ Around 25KHZ
输入电压Input	0~25VPP	输出气压Output pressure	0~8KGF/CM	输入电流Input Current	最高1.2A
输入频率Voltage Frequency	约20KHZ Around 25KHZ			输入电压Input	0~100KV DC
输入电流Input Current	最高7.2A Around 7.2A			接连电缆Cable	3.5M
电纲电缆Cable	4M			喷枪重量Weight	约530G Around 530G
控制气动电压Solenoid valve control voltage	24V DC			安全标准Safety Standards	1P54
控制气动电压Solenoid valve control voltage	24V DC			出粉量Output powder volume	约600G/MIN Around 600G/MIN
